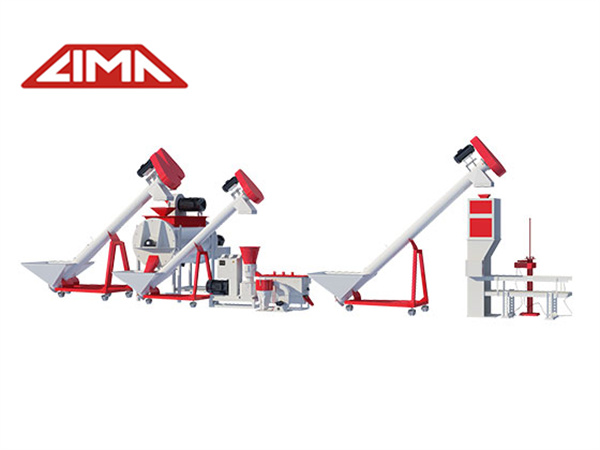

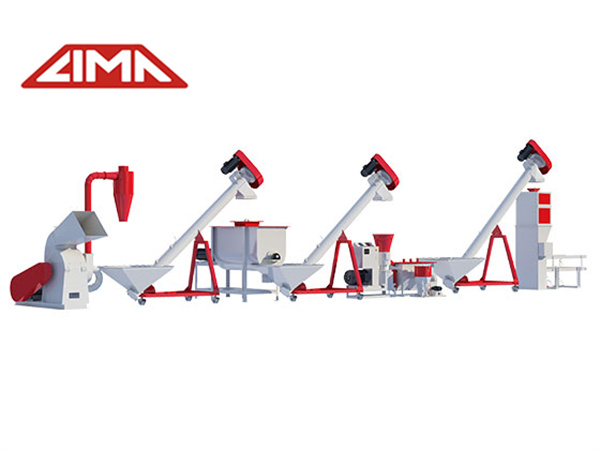

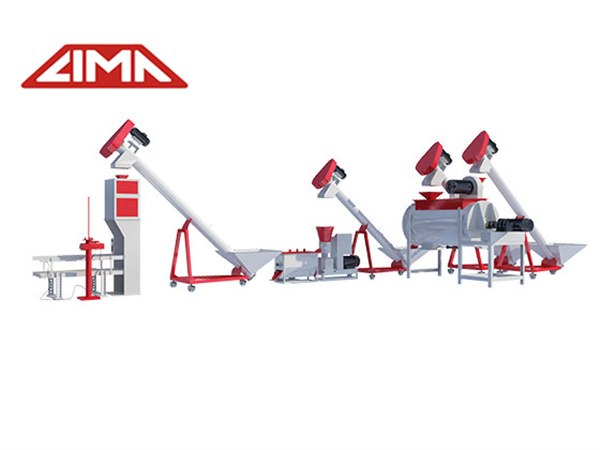

The main machine of Chicken feed pellet production line includes Chicken feed hammer mill, feed mixer, feed pellet machine,cooling machine, packing system.
Chicken feed pellet production line is also used to make animal feed pellets,like chicken feed,pig feed,cattle feed. The solution of poultry feed plant has 100~1000kg/h, 1t/h, 2t/h, 3t/h and 5t/h. LIMA also provides the other feed machine line solutions capacity in according with client’s requirement.
| 1-2ton/h chicken feed pellet line | ||||
| Item | Name | Model | Motor（kw） | Machine Picture |

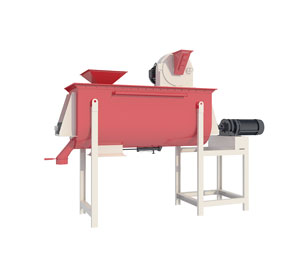

| 1 | Crusher and Mixer machine(U-shape） | SFL20 | 18.5 |  |
| SHW1.0 | 7.5 | |||
| Pellet Processing | ||||

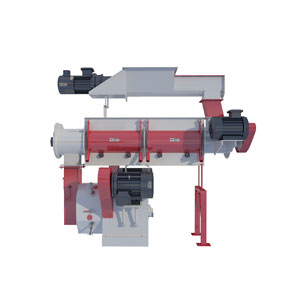

| 2 | SZLH250 Ring Die Pellet Machine | Poultry feed pellet machine | 22 |  |
| Conditioner(stainless | 2.2 | |||
| Feeder（stainless | 0.75 | |||

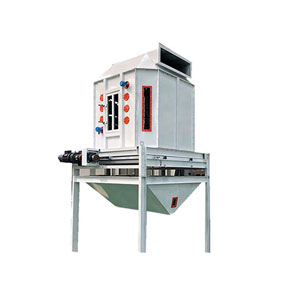

| 3 | Counter flow cooler machine | SKLN11×1 | 0.75 |  |

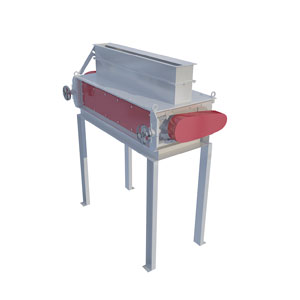

| 4 | Roller Crusher | SSLG15*80 | 5.5 |  |

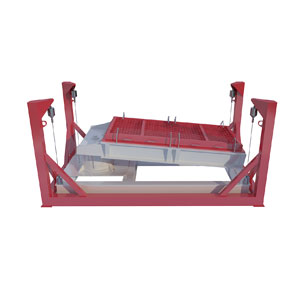

| 5 | Screener | ZDS60*2d | 1.5 |  |
| Other Accessories | ||||

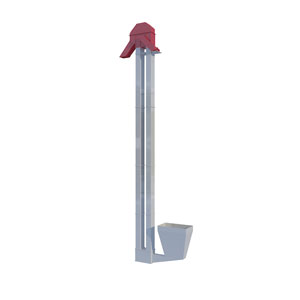

| 6 | Bucket elevator | TDTG26/18*3pcs | 2.2*3 |  |

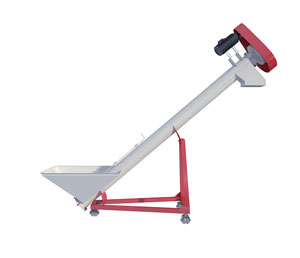

| 7 | Screw conveyor | Feeding hopper | 4.4 | |
| TLSS16 Conveyor |  |
|||

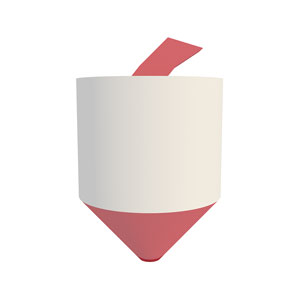

| 8 | Buffer bin | 1.0m³ *2 |  |
|
| 2m³ *1 (Silo for pellets) |  |
|||

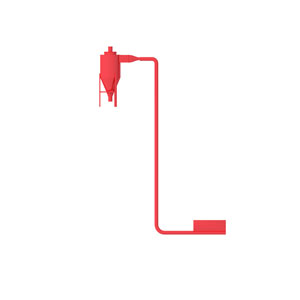

| 9 | Air blower with pipe | 4-72No4A | 5.5 | |
| 10 | Control cabinet | |||
| 11 | Air lock | GFY250 | 0.75 | |
| 12 | Pneumatic gate valve | |||
